JIS F7427 (F7356)
Marine Bronze

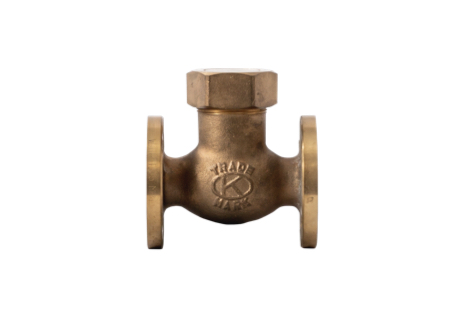

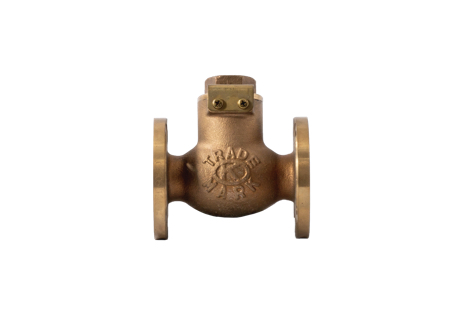

5K Lift Check Globe Valves

Nominal Pressure 5K
Hydraulic
Inspection		 Body 1.05MPa
Seat 0.77MPa to 0.5MPa

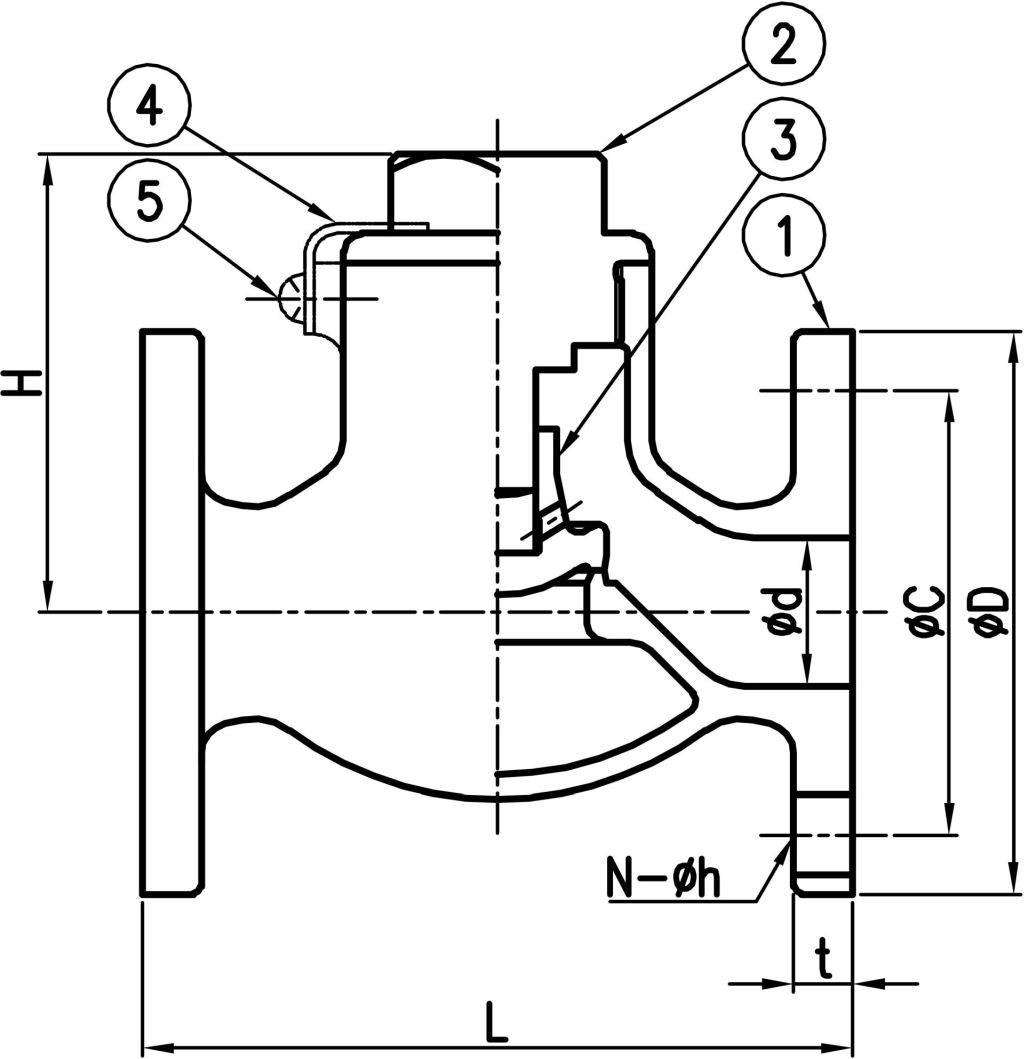

Type Nominal d L D C N h t H
Lift
Check
Globe
Valve		 Press. Dia
5K 15A 15 100 80 60 4 12 9 62
20A 20 110 85 65 4 12 10 71
25A 25 120 95 75 4 12 10 77
32A 32 140 115 90 4 15 12 81
40A 40 160 120 95 4 15 12 91
No. Item Material
1 Body CAC406
2 Bonnet CAC406
3 Disc C3771BD
4 Lock Plate C2600P
5 Set Screw C2700W
- - -
- - -
- - -

JIS F7427 (F7371)
Marine Bronze

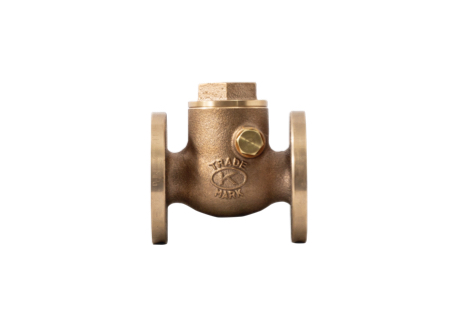

5K Swing Check Valves

Nominal Pressure 5K
Hydraulic
Inspection		 Body 1.05MPa
Seat 0.77 to 0.4MPa

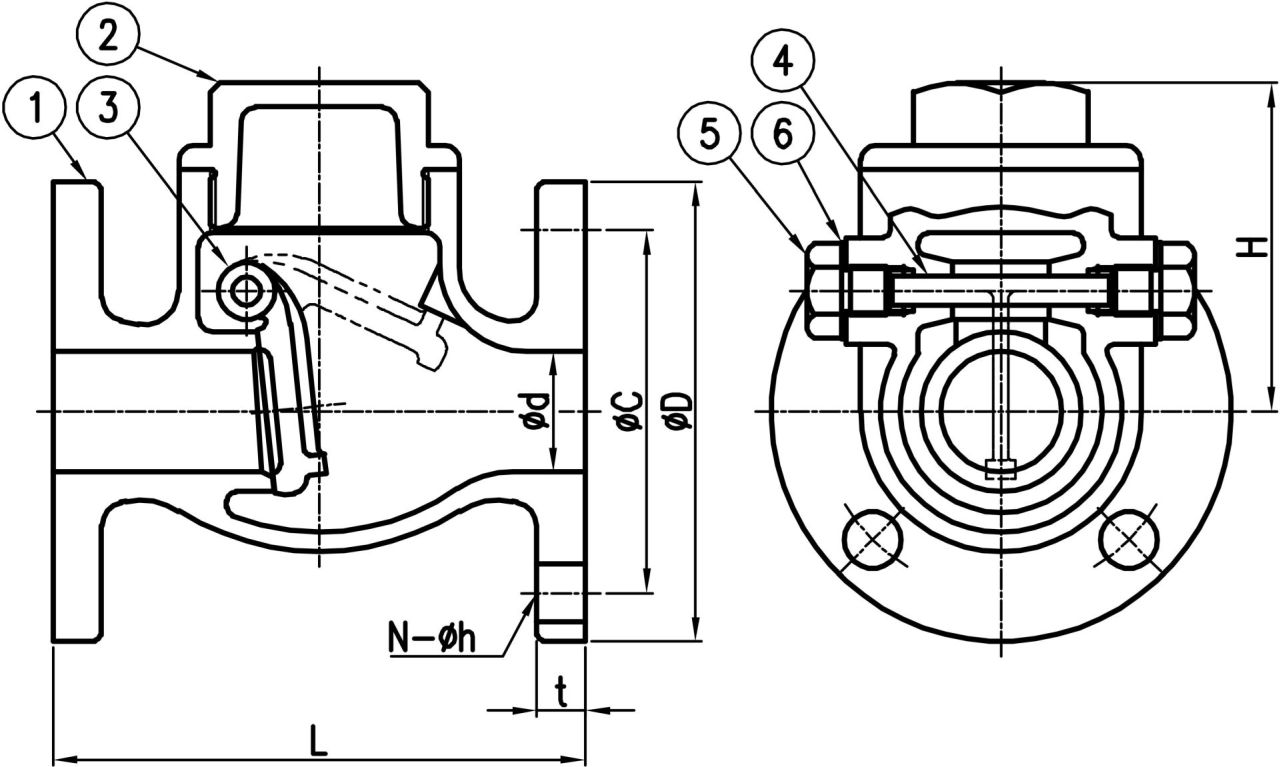

Type Nominal d L D C N h t H
Swing
Check
Valve		 Press. Dia
5K 25A 25 110 95 75 4 12 10 69
32A 32 130 115 90 4 15 12 79
40A 40 140 120 95 4 15 12 93
No. Item Material
1 Body CAC406
2 Bonnet CAC406
3 Disc CAC406
4 Hinge Pin C3604BD
5 Plug C3604BD
6 Gasket JISF7102
- - -
- - -

JIS F7427 (F7415)
Marine Bronze
5K Lift Check
Globe Valves
(Union Bonnet Type)

Nominal Pressure 5K
Hydraulic
Inspection		 Body 1.05MPa
Seat 0.77 to 0.4MPa

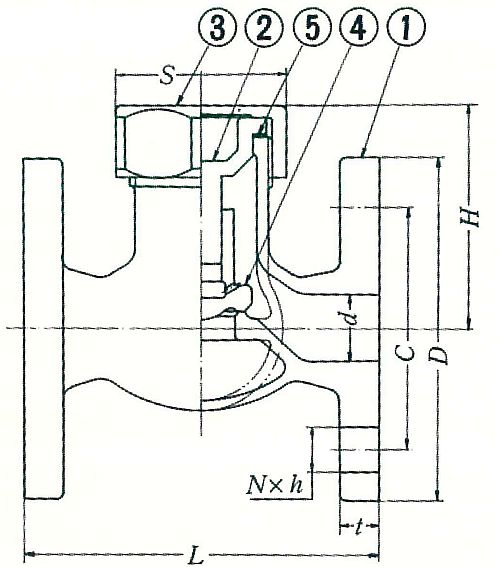

Type Nominal d L D C N h t H S
Lift
Check
Globe
Valve
(Union
Bonnet
Type)		 Press. Dia
5K 15A 15 100 80 60 4 12 9 66 55
20A 20 110 85 65 4 12 10 71 55
25A 25 120 95 75 4 12 10 81 60
32A 32 140 115 90 4 15 12 83 70
40A 40 160 120 95 4 15 12 91 80
No. Item Material
1 Body CAC406
2 Disc Guide C3771BD
3 Bonnet Nut CAC406
4 Disc C3771BD
5 Gasket JISF7102
- - -
- - -
- - -

JIS F7427 (F7416)
Marine Bronze
5K Lift Check

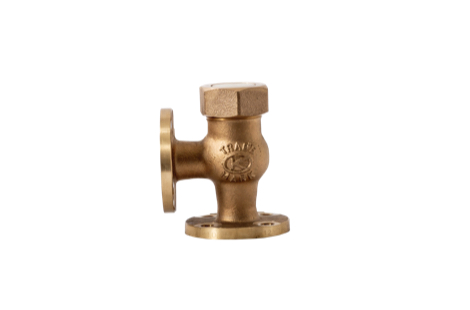

Angle Valves
(Union Bonnet Type)

Nominal Pressure 5K
Hydraulic
Inspection		 Body 1.05MPa
Seat 0.77 to 0.4MPa

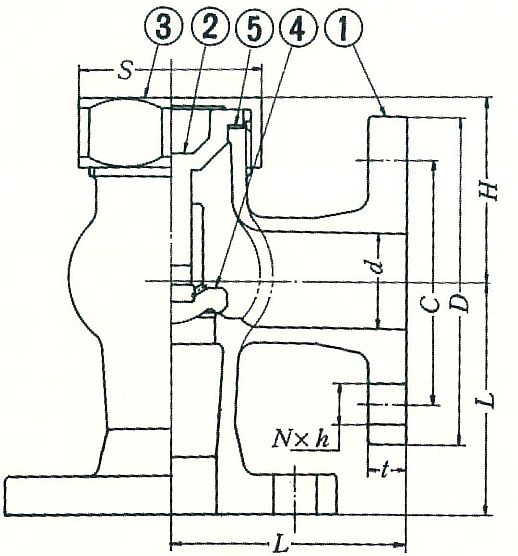

Type Nominal d L D C N h t H S
Lift
Check
Angle
Valve
(Union
Bonnet
Type)		 Press. Dia
5K 15A 15 55 80 60 4 12 9 56 55
20A 20 60 85 65 4 12 10 59 55
25A 25 65 95 75 4 12 10 67 60
32A 32 80 115 90 4 15 12 65 70
40A 40 85 120 95 4 15 12 69 80
No. Item Material
1 Body CAC406
2 Disc Guide C3771BD
3 Bonnet Nut CAC406
4 Disc C3771BD
5 Gasket JISF7102
- - -
- - -
- - -

JIS F7427 (F7417)
Marine Bronze
16K Lift Check
Globe Valves
(Union Bonnet Type)

Nominal Pressure 16K
Hydraulic
Inspection		 Body 3.3MPa
Seat 2.42 to 0.4MPa
Type Nominal d L D C N h t H S
Lift
Check
Globe
Valve
(Union
Bonnet
Type)		 Press. Dia
16K 15A 15 110 95 70 4 15 12 66 55
20A 20 120 100 75 4 15 14 71 55
25A 25 130 125 90 4 19 14 81 60
32A 32 160 135 100 4 19 16 83 70
40A 40 180 140 105 4 19 16 91 80
No. Item Material
1 Body CAC406
2 Disc Guide C3771BD
3 Bonnet Nut CAC406
4 Disc C3771BD
5 Gasket JISF7102
- - -
- - -
- - -

JIS F7427 (F7418)
Marine Bronze
16K Lift Check
Angle Valves
(Union Bonnet Type)

Nominal Pressure 16K
Hydraulic
Inspection		 Body 3.3MPa
Seat 2.42 to 0.4MPa
Type Nominal d L D C N h t H S
Lift
Check
Angle
Valve
(Union
Bonnet
Type)		 Press. Dia
16K 15A 15 70 95 70 4 15 12 56 55
20A 20 75 100 75 4 15 14 59 55
25A 25 85 125 90 4 19 14 67 60
32A 32 95 135 100 4 19 16 65 70
40A 40 100 140 105 4 19 16 69 80
No. Item Material
1 Body CAC406
2 Disc Guide C3771BD
3 Bonnet Nut CAC406
4 Disc C3771BD
5 Gasket JISF7102
- - -
- - -
- - -
