JIS B2011
10K Flanged Globe Valves

Nominal Pressure 10K
Hydraulic
Inspection		 Body 2.1MPa
Seat 1.54MPa

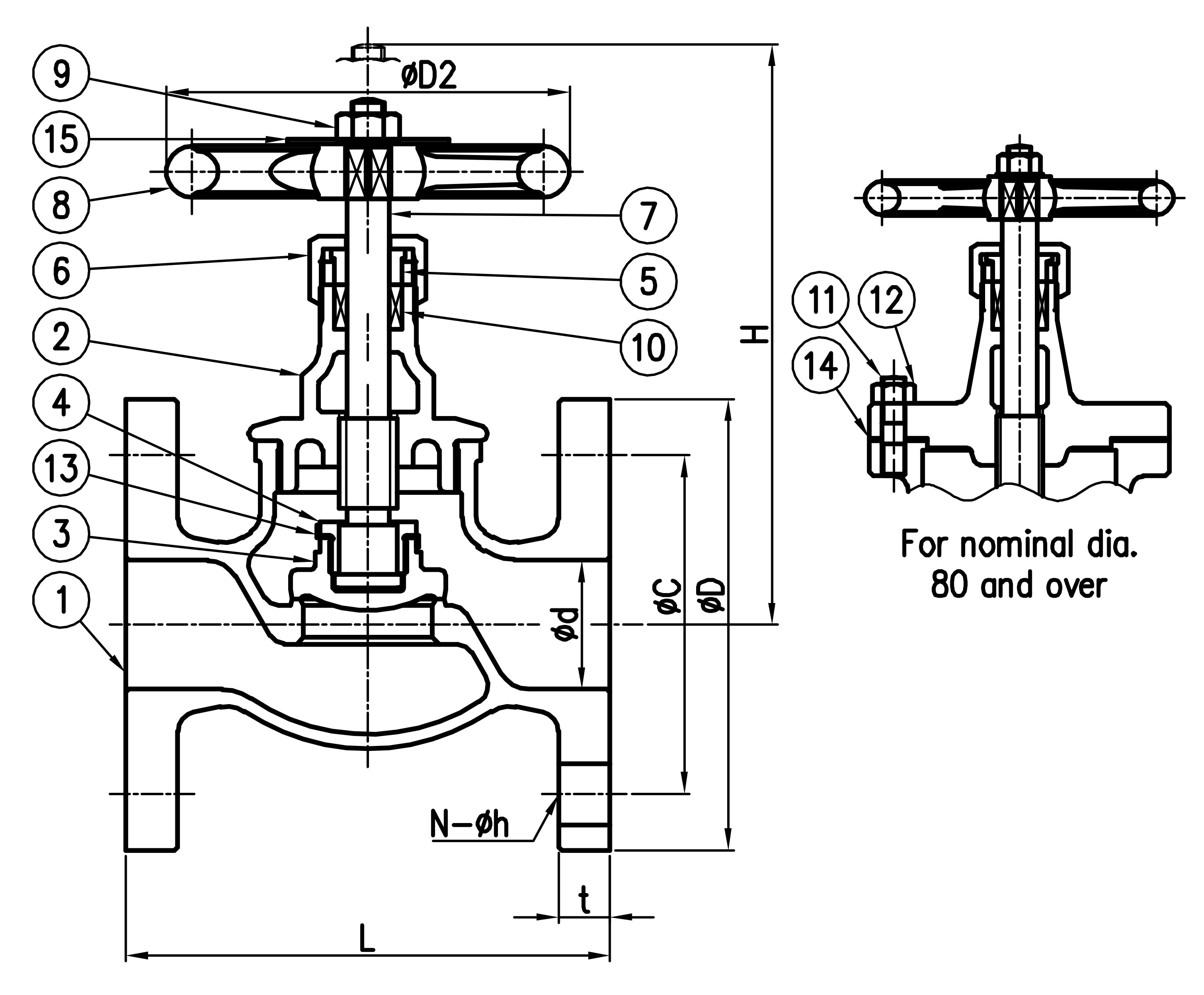

Type Nominal d L D C N h t H D2
Globe
Valve		 Press. Dia
10K 15A 15 85 95 70 4 15 12 120 63
20A 20 95 100 75 4 15 14 130 80
25A 25 110 125 90 4 19 14 145 100
32A 32 130 135 100 4 19 16 170 125
40A 40 150 140 105 4 19 16 180 125
50A 50 180 155 120 4 19 16 205 140
65A 65 210 175 140 4 19 18 240 160
80A 80 240 185 150 8 19 18 275 180
100A 100 280 210 175 8 19 18 340 200
No. Item Material No. Item Material
1 Body CAC406 9 Haxagon Nut C3604BD
2 Bonnet CAC406 10 Packing JISF7102
3 Disc CAC406
or
C3771BD		 11 Stud Bolt C3771BD
4 Disc Nut C3604BD 12 Haxagon Nut C3604BD
5 Gland C3604BD 13 Disc Washer C2600P
6 Gland Nut C3604BD 14 Gasket JISF7102
7 Stem C3771BD 15 Name Plate C2801P
8 Hand Wheel FC200 - - -

JIS F7427 (F7367)
Marine Bronze

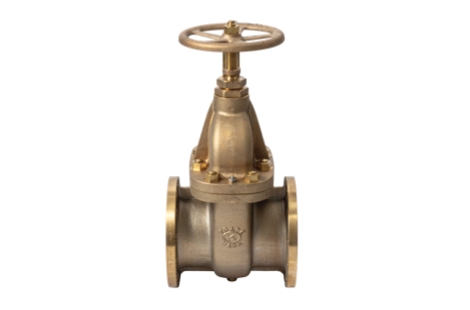

5K Rising Stem Type
Gate Valves

Nominal Pressure 5K
Hydraulic
Inspection		 Body 1.05MPa
Seat

0.77MPa

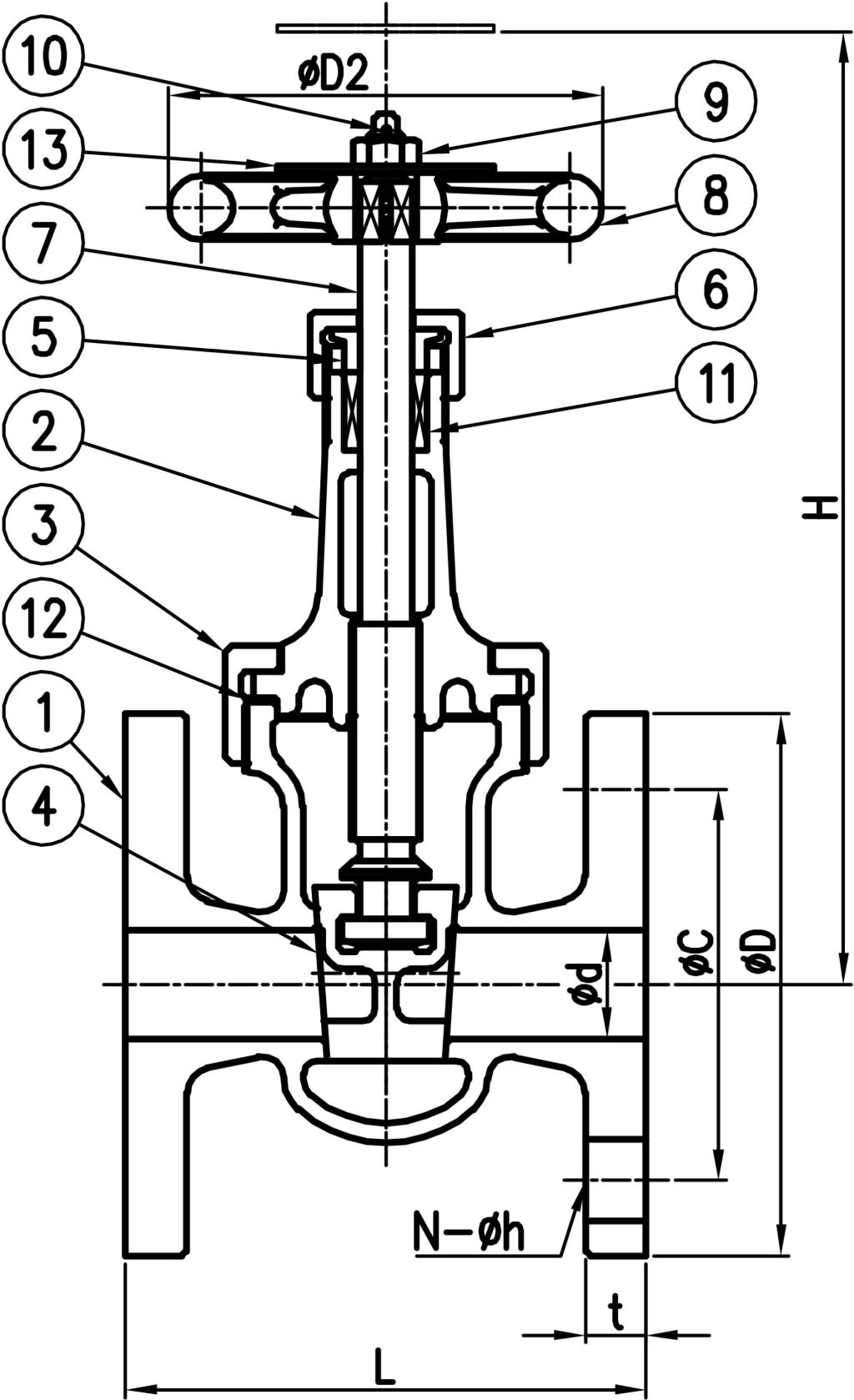

Type Nominal d L D C N h t H D2
Rising
Stem
Type
Gate
Valve		 Press. Dia
5K 15A 15 90 80 60 4 12 9 175 80
20A 20 100 85 65 4 12 10 200 80
25A 25 110 95 75 4 12 10 220 100
32A 32 130 115 90 4 15 12 250 100
40A 40 140 120 95 4 15 12 290 125
No. Item Material No. Item Material
1 Body CAC406 9 Haxagon Nut C3604BD
2 Bonnet CAC406 10 Split Pin C2600W
3 Bonnet Nut CAC406 11 Packing JISF7102
4 Disc CAC406 12 Gasket JISF7102
5 Packing Gland C3604BD 13 Name Plate C2801P
6 Gland Nut C3604BD - - -
7 Stem C3771BD - - -
8 Hand Wheel FC200 - - -

JIS F7427 (F7368)
Marine Bronze

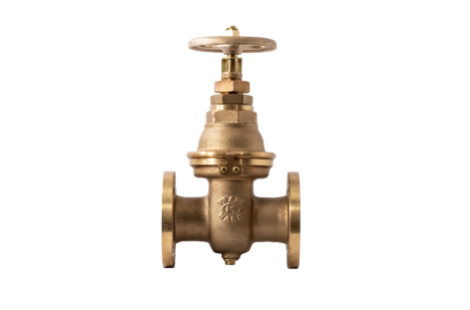

10K Rising Stem Type
Gate Valves

Nominal Pressure 10K
Hydraulic
Inspection		 Body 2.1MPa
Seat 1.54MPa
Type Nominal d L D C N h t H D2
Rising
Stem
Type
Gate
Valve		 Press. Dia
10K 15A 15 100 95 70 4 15 12 175 80
20A 20 110 100 75 4 15 14 200 80
25A 25 120 125 90 4 19 14 220 100
32A 32 140 135 100 4 19 16 250 100
40A 40 150 140 105 4 19 16 290 125
No. Item Material No. Item Material
1 Body CAC406 9 Haxagon Nut C3604BD
2 Bonnet CAC406 10 Split Pin C2600W
3 Bonnet Nut CAC406 11 Packing JISF7102
4 Disc CAC406 12 Gasket JISF7102
5 Packing Gland C3604BD 13 Name Plate C2801P
6 Gland Nut C3604BD - - -
7 Stem C3771BD - - -
8 Hand Wheel FC200 - - -

NDS F7378B

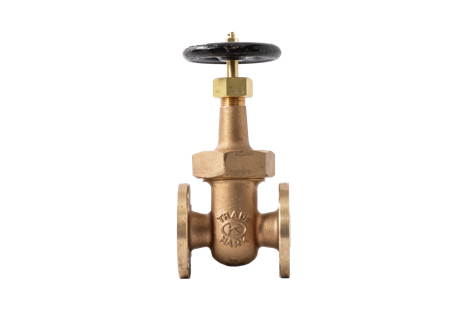

5K Flanged Gate Valves

Nominal Pressure 5K
Hydraulic
Inspection		 Body 1.0MPa
Seat 0.8MPa

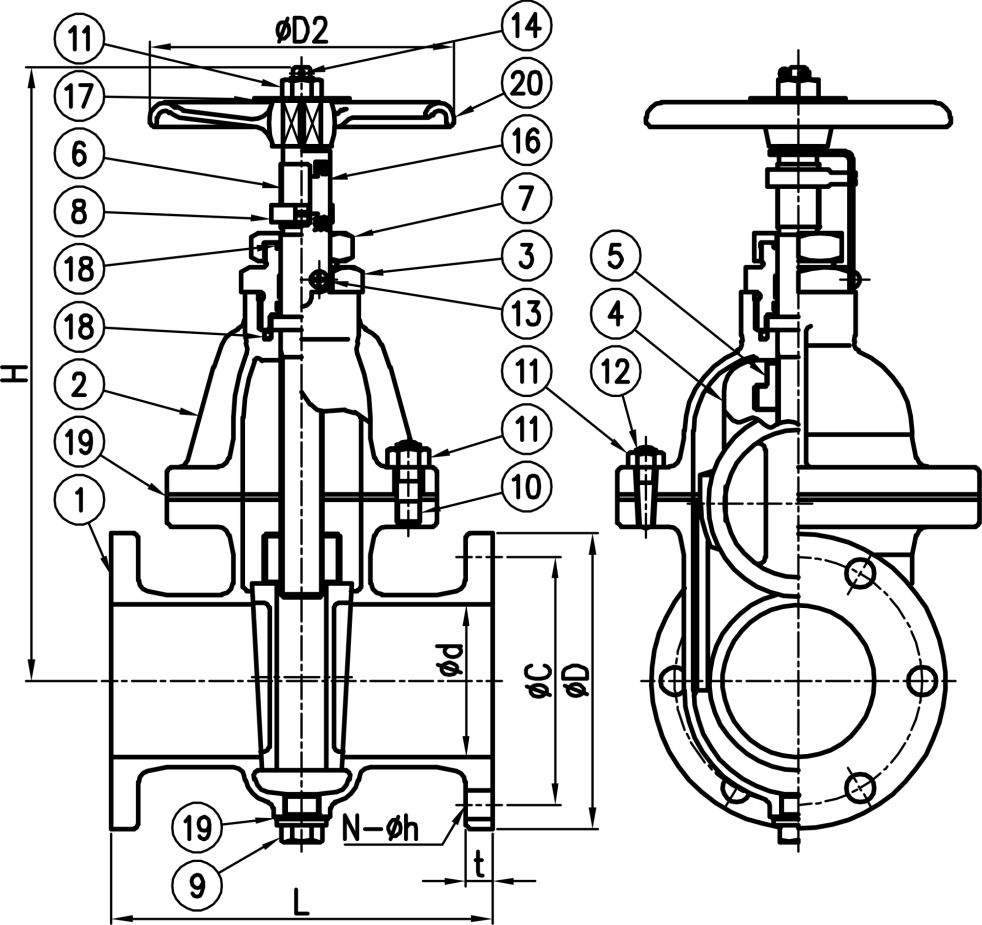

Type Nominal d L Small Flanged H D2
D C N h t
Gate Valve Press. Dia
5K 40A 40 140 110 85 4 15 12 225 100
50A 50 180 125 100 4 15 14 250 120
65A 65 190 145 120 4 15 14 290 140
80A 80 200 155 130 6 15 14 320 160
No. Item Material No. Item Material No. Item Material
1 Body CAC403 9 Drain Plug CAC403 17 Name Plate SUS304
2 Bonnet CAC403 10 - - 18 O-ring JISB2401
3 Packing Box CAC403 11 Haxagon Nut C3604BD 19 Gasket JISF7102
4 Disc CAC403 12 - - 20 Hand Wheel CAC402
5 Screw CAC403 13 Set Screw C2700W - - -
6 Stem C3771BD 14 Split Pin C2700W - - -
7 Gland Nut CAC402 15 Lock Plate C2600P - - -
8 Indicator CAC402 16 Ind. Plate C2600P - - -

NDS F7378B
5K Flanged Gate Valves

Nominal Pressure 5K
Hydraulic
Inspection		 Body 1.0MPa
Seat 0.8MPa

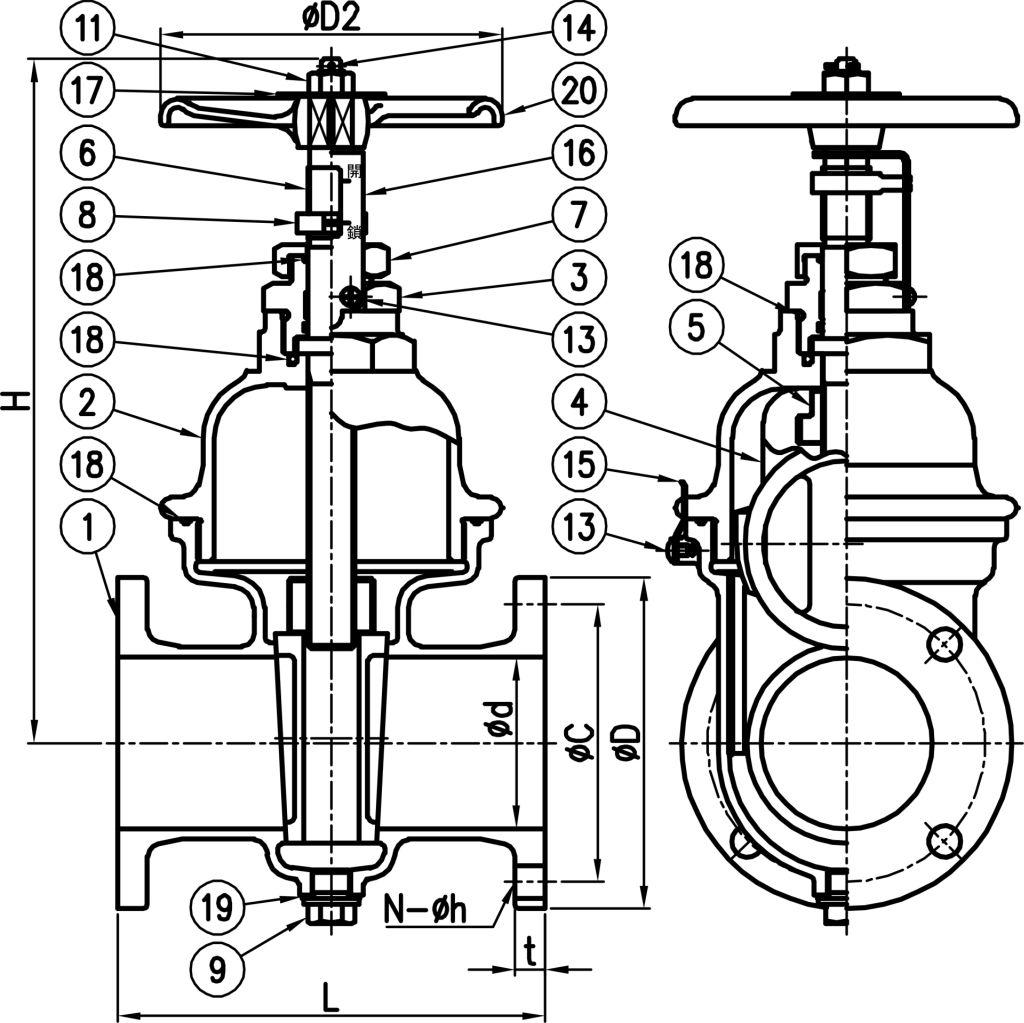

Type Nominal d L Small Flanged H D2
D C N h t
Gate Valve Press. Dia
5K 90A 90 210 165 140 6 15 14 340 160
100A 100 230 180 155 6 15 16 370 180
125A 125 250 225 190 6 19 16 425 200
150A 150 270 225 220 8 19 18 490 230
200A 200 290 300 265 12 19 20 580 250
250A 250 330 370 330 12 23 22 685 280

300A

 300 370 420 380 12 23 22 790 320
No. Item Material No. Item Material No. Item Material
1 Body CAC403 9 Drain Plug CAC403 17 Name Plate SUS304
2 Bonnet CAC403 10 Stud Bolt C3771BD 18 O-ring JISB2401
3 Packing Box CAC403 11 Haxagon Nut C3604BD 19 Gasket JISF7102
4 Disc CAC403 12 Taper Pin SUS403 20 Hand Wheel CAC402
5 Screw CAC403 13 Set Screw C2700W - - -
6 Stem C3771BD 14 Split Pin C2700W - - -
7 Gland Nut CAC402 15 - - - - -
8 Indicator CAC402 16 Ind. Plate C2600P - - -

NDS F7379B
10K Flanged Gate Valves

Nominal Pressure 10K
Hydraulic
Inspection		 Body 2.0MPa
Seat 1.5MPa
Type Nominal d L Small Flanged H D2
D C N h t
Gate
Valve		 Press. Dia
10K 40A 40 150 115 90 6 15 14 230 100
50A 50 200 130 105 6 15 16 255 120
65A 65 220 150 125 6 15 16 295 140
80A 80 230 175 140 6 19 16 330 160
No. Item Material No. Item Material No. Item Material
1 Body CAC403 9 Drain Plug CAC403 17 Name Plate SUS304
2 Bonnet CAC403 10 - - 18 O-ring JISB2401
3 Packing Box CAC403 11 Haxagon Nut C3604BD 19 Gasket JISF7102
4 Disc CAC403 12 - - 20 Hand Wheel CAC402
5 Screw CAC403 13 Set Screw C2700W - - -
6 Stem C3771BD 14 Split Pin C2700W - - -
7 Gland Nut CAC402 15 Lock Plate C2600P - - -
8 Indicator CAC402 16 Ind. Plate C2600P - - -

NDS F7379B
10K Flanged Gate Valves

Nominal Pressure 10K
Hydraulic
Inspection		 Body 2.0MPa
Seat 1.5MPa
Type Nominal d L Small Flanged H D2
D C N h t
Gate Valve Press. Dia
10K 90A 90 240 185 150 6 19 16 350 160
100A 100 250 200 165 8 19 18 385 180
125A 125 270 230 195 8 19 18 435 200
No. Item Material No. Item Material No. Item Material
1 Body CAC403 9 Drain Plug CAC403 17 Name Plate SUS304
2 Bonnet CAC403 10 Stud Bolt C3771BD 18 O-ring JISB2401
3 Packing Box CAC403 11 Haxagon Nut C3604BD 19 Gasket JISF7102
4 Disc CAC403 12 Taper Pin SUS403 20 Hand Wheel CAC402
5 Screw CAC403 13 Set Screw C2700W - - -
6 Stem C3771BD 14 Split Pin C2700W - - -
7 Gland Nut CAC402 15 - - - - -
8 Indicator CAC402 16 Ind. Plate C2600P - - -

JIS F7427 (F7302)
Marine Bronze

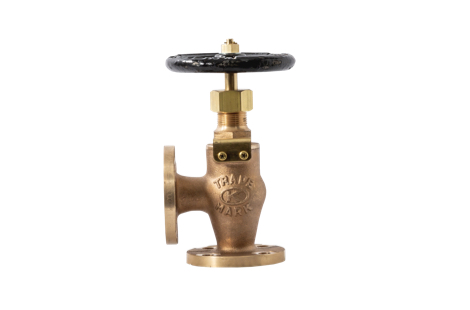

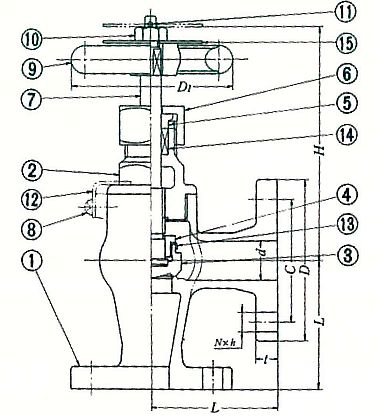

5K Angle Valves

Nominal Pressure 5K
Hydraulic
Inspection		 Body 1.05MPa
Seat 0.77MPa
Type Nominal d L D C N h t H D1
Angle
Valve		 Press. Dia
5K 15A 15 55 80 60 4 12 9 120 80
20A 20 60 85 65 4 12 10 130 100
25A 25 65 95 75 4 12 10 145 125
32A 32 80 115 90 4 15 12 150 125
40A 40 85 120 95 4 15 12 165 140
No. Item Material No. Item Material
1 Body CAC406 9 Hand Wheel FC200
2 Bonnet CAC406 10 Haxagon Nut C3604BD
3 Disc C3771BD 11 Split Pin C2600W
4 Disc Nut C3604BD 12 Lock Plate C2600P
5 Gland C3604BD 13 Disc Washer C2600P
6 Gland Nut C3604BD 14 Packing JISF7102
7 Stem C3771BD 15 Name Plate C2801P
8 Set Screw C2700W - - -
