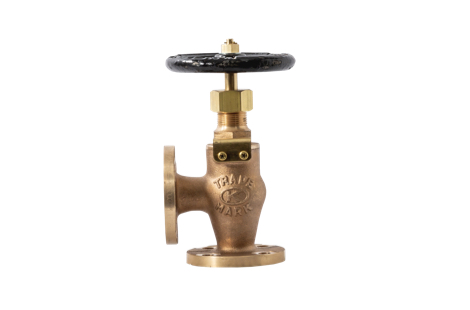

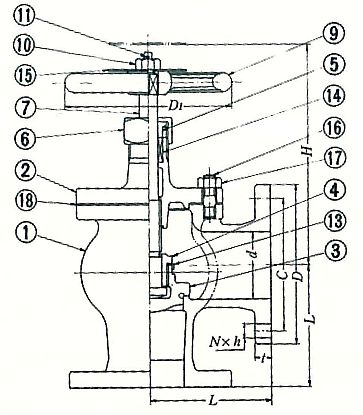

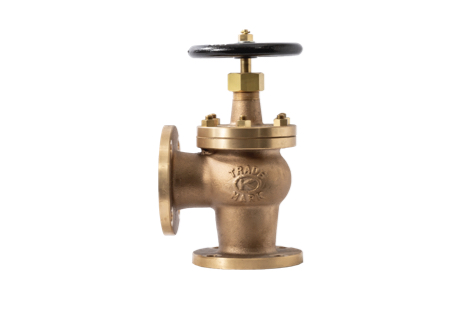

JIS F7427 (F7302)
Marine Bronze
5K Angle Valves

Nominal Pressure 5K
Hydraulic
Inspection		 Body 1.05MPa
Seat 0.77MPa
Type Nominal d L D C N h t H D1
Angle
Valve		 Press. Dia
5K 50A 50 100 130 105 4 15 14 200 140
65A 65 115 155 130 4 15 14 220 160
No. Item Material No. Item Material No. Item Material
1 Body CAC406 9 Hand Wheel FC200 17 Haxagon Nut C3604BD
2 Bonnet CAC406 10 Haxagon Nut C3604BD 18 Gasket JISF7102
3 Disc C3771BD 11 Split Pin C2600W - - -
4 Disc Nut C3604BD 12 - - - - -
5 Gland C3604BD 13 Disc Washer C2600P - - -
6 Gland Nut C3604BD 14 Packing JISF7102 - - -
7 Stem C3771BD 15 Name Plate C2801P - - -
8 - - 16 Stud Bolt C3771BD - - -

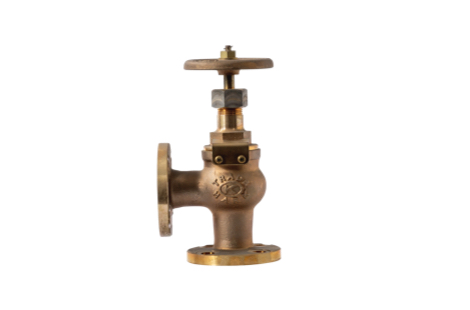

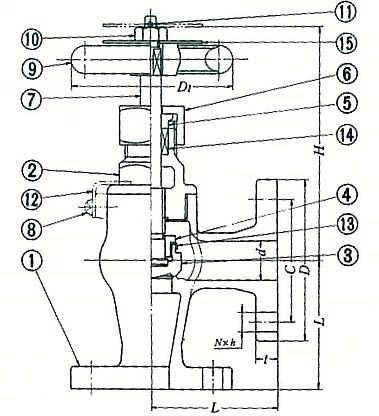

JIS F7427 (F7304)
Marine Bronze
16K Angle Valves

Nominal Pressure 16K
Hydraulic
Inspection		 Body 3.3MPa
Seat 2.42MPa
Type Nominal d L D C N h t H D1
Angle
Valve		 Press. Dia
16K 15A 15 70 95 70 4 15 12 120 80
20A 20 75 100 75 4 15 14 130 100
25A 25 85 125 90 4 19 14 145 125
32A 32 95 135 100 4 19 16 150 125
40A 40 100 140 105 4 19 16 165 140
No. Item Material No. Item Material
1 Body CAC406 9 Hand Wheel FC200
2 Bonnet CAC406 10 Haxagon Nut C3604BD
3 Disc C3771BD 11 Split Pin C2600W
4 Disc Nut C3604BD 12 Lock Plate C2600P
5 Gland C3604BD 13 Disc Washer C2600P
6 Gland Nut C3604BD 14 Packing JISF7102
7 Stem C3771BD 15 Name Plate C2801P
8 Set Screw C2700W - - -

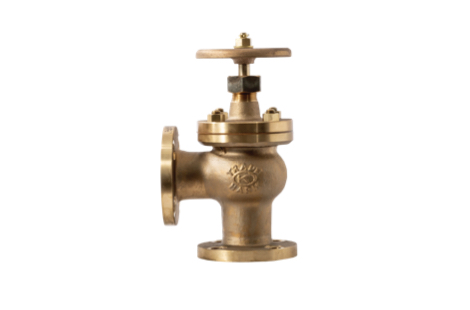

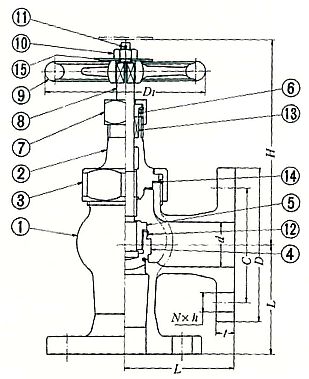

JIS F7427 (F7347)
Marine Bronze
5K Angle Valves
(Union Bonnet Type)

Nominal Pressure 5K
Hydraulic
Inspection		 Body 1.05MPa
Seat 0.77MPa
Type Nominal d L D C N h t H D1
Angle
Valve
(Union
Bonnet
Type)		 Press. Dia
5K 15A 15 55 80 60 4 12 9 145 80
20A 20 60 85 65 4 12 10 155 100
25A 25 65 95 75 4 12 10 175 125
32A 32 80 115 90 4 15 12 175 125
40A 40 85 120 95 4 15 12 190 140
No. Item Material No. Item Material
1 Body CAC406 9 Hand Wheel FC200
2 Bonnet CAC406 10 Haxagon Nut C3604BD
3 Bonnet Nut CAC406 11 Split Pin C2600W
4 Disc C3771BD 12 Disc Washer C2600P
5 Disc Nut C3604BD 13 Packing JISF7102
6 Gland C3604BD 14 Gasket JISF7102
7 Gland Nut C3604BD 15 Name Plate C2801P
8 Stem C3771BD - - -

JIS F7427 (F7349)
Marine Bronze
16K Angle Valves
(Union Bonnet Type)

Nominal Pressure 16K
Hydraulic
Inspection		 Body 3.3MPa
Seat 2.42MPa
Type Nominal d L D C N h t H D1
Angle
Valve
(Union
Bonnet
Type)		 Press. Dia
16K 15A 15 70 95 70 4 15 12 145 80
20A 20 75 100 75 4 15 14 155 100
25A 25 85 125 90 4 19 14 175 125
32A 32 95 135 100 4 19 16 175 125
40A 40 100 140 105 4 19 16 190 140
No. Item Material No. Item Material
1 Body CAC406 9 Hand Wheel FC200
2 Bonnet CAC406 10 Haxagon Nut C3604BD
3 Bonnet Nut CAC406 11 Split Pin C2600W
4 Disc C3771BD 12 Disc Washer C2600P
5 Disc Nut C3604BD 13 Packing JISF7102
6 Gland C3604BD 14 Gasket JISF7102
7 Gland Nut C3604BD 15 Name Plate C2801P
8 Stem C3771BD - - -

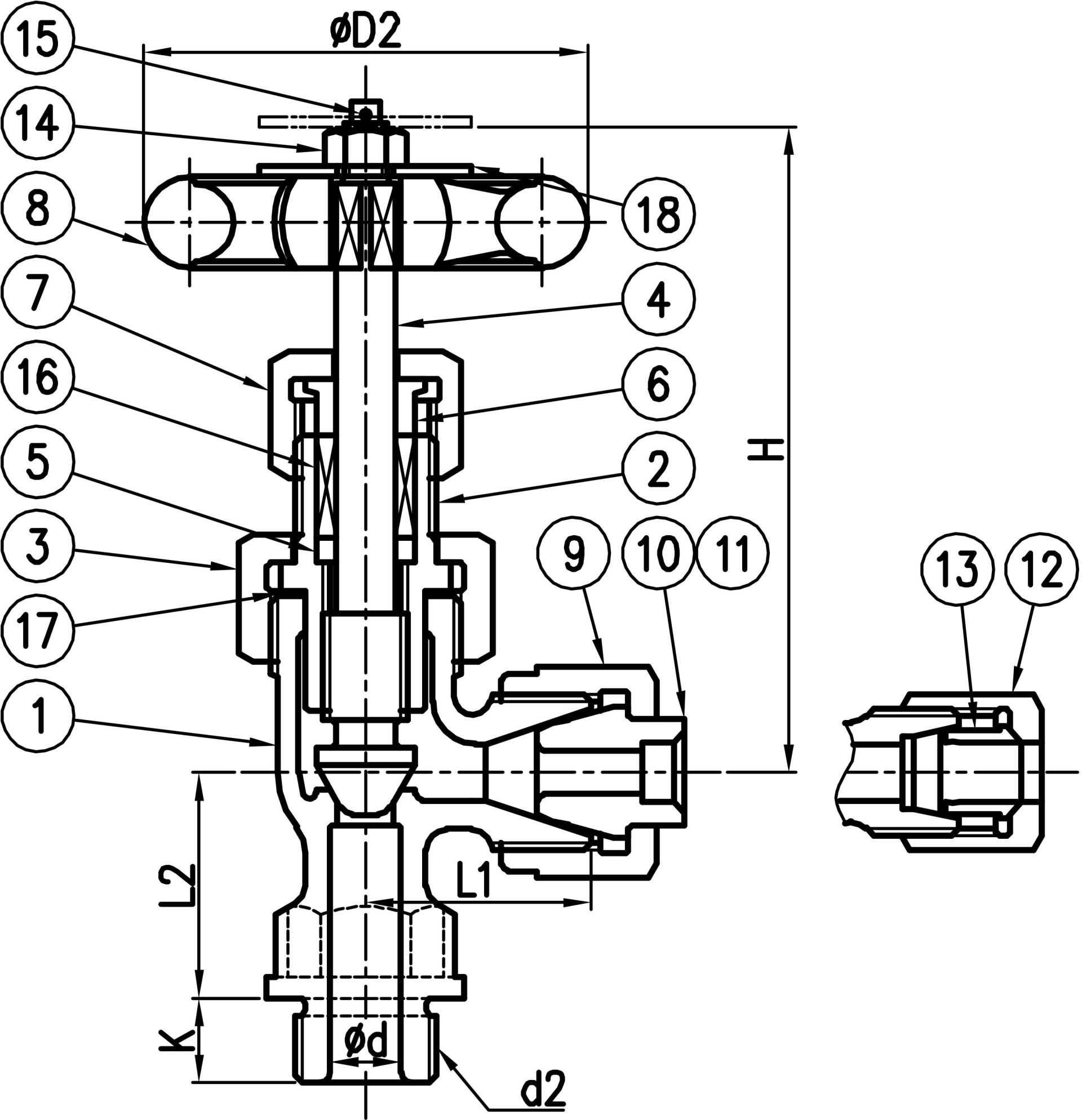

JIS F7427 (F7389)
Marine Bronze
20K Angle Valves

Nominal Pressure 20K
Hydraulic
Inspection		 Body 4.2MPa
Seat 3.08MPa
Type Nominal d L1 L2 d2 K H D2
Angle
Valve
Type S		 Press. Dia
20K ６ 10 32 32 M20×1.5 12 95 63
10 12 39 35 M24×2 16 105 80
No. Item Material No. Item Material No. Item Material
1 Body CAC406 9 Union Nut C3604BD 17 Gasket JISF7102
2 Bonnet C3604BD 10 Nipple(Cu) C3604BD 18 Name Plate C2801P
3 Bonnet Nut C3604BD 11 Nipple(STP) SS400 - - -
4 Stem C3771BD 12 Union Nut C3604BD - - -
5 Seat Ring C3604BD 13 Sleeve C3604BD - - -
6 Packing Gland C3604BD 14 Haxagon Nut C3604BD - - -
7 Gland Nut C3604BD 15 Split Pin C2600W - - -
8 Hand Wheel FC200 16 Packing JISF7102 - - -

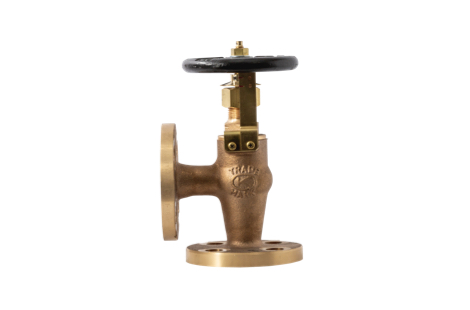

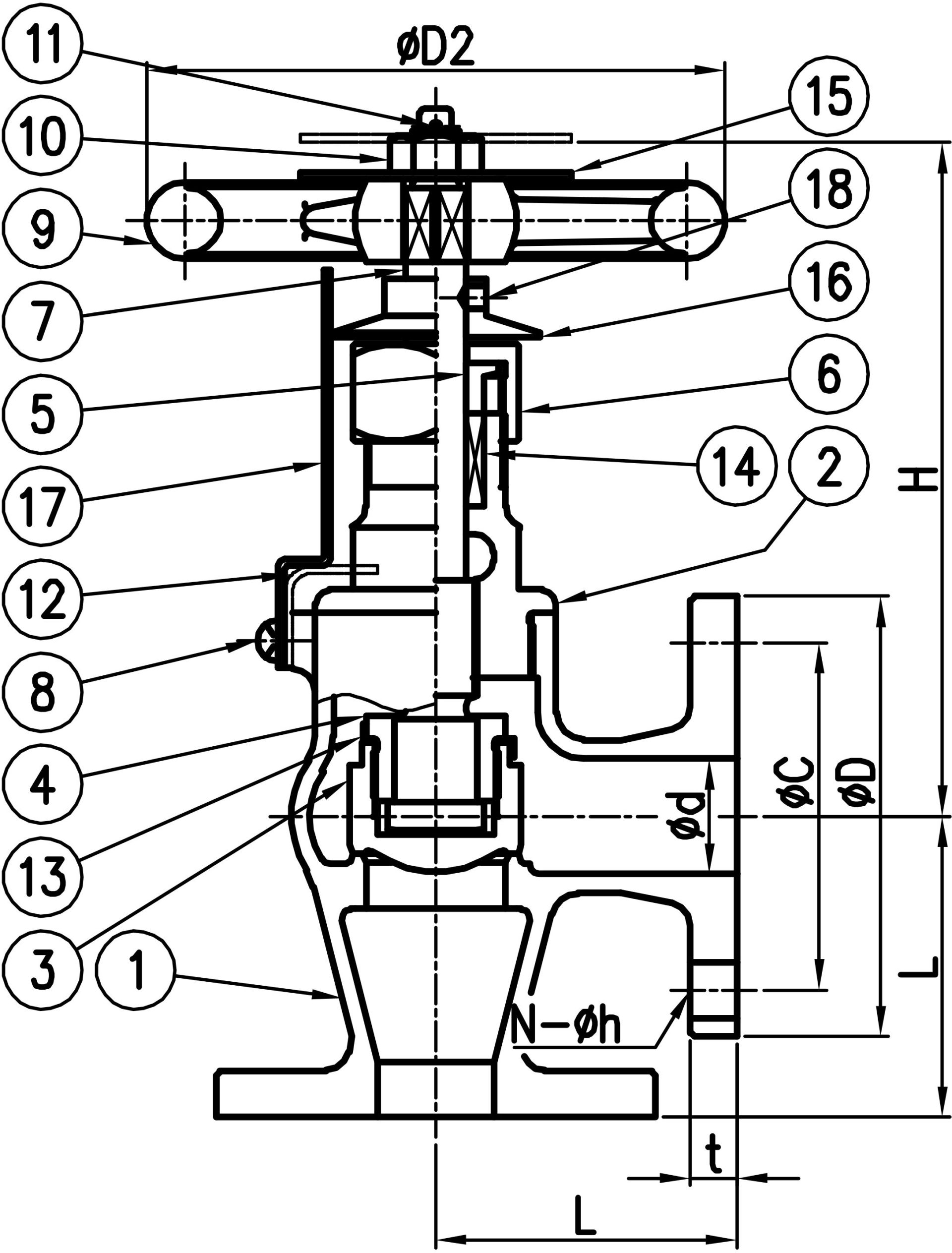

JIS F7427 (F7404)
Marine Hull Bronze
16K Angle Valves

Nominal Pressure 16K
Hydraulic
Inspection		 Body 3.3MPa
Seat 2.42MPa
Type Nominal d L D C N h t H D2
Angle
Valve		 Press. Dia
16K 15A 15 70 95 70 4 15 12 125 80
20A 20 75 100 75 4 15 14 135 100
25A 25 85 125 90 4 19 14 150 125
32A 32 95 135 100 4 19 16 155 125
40A 40 100 140 105 4 19 16 170 140
No. Item Material No. Item Material No. Item Material
1 Body CAC406 9 Hand Wheel FC200 17 Indicator Plate C2600P
2 Bonnet CAC406 10 Haxagon Nut C3604BD 18 Set Screw SUS304
3 Disc C3771BD 11 Split Pin C2600W - - -
4 Disc Nut C3604BD 12 Lock Plate C2600P - - -
5 Gland C3604BD 13 Disc Washer C2600P - - -
6 Gland Nut C3604BD 14 Packing JISF7102 - - -
7 Stem C3771BD 15 Name Plate C2801P - - -
8 Set Screw C2700W 16 Indicator C3604BD - - -

NDS F7372B
5K Flanged Angle Valves

Nominal Pressure 5K
Hydraulic
Inspection		 Body 1.0MPa
Seat 0.8MPa
Type Nominal d L D C N h t H D2
Angle
Valve		 Press. Dia
5K 15A 15 55 75 55 4 12 9 125 65
20A 20 60 80 60 4 12 10 140 80
25A 25 65 85 65 4 12 10 155 100
32A 32 80 105 80 4 15 12 160 100
40A 40 85 110 85 4 15 12 170 120
No. Item Material No. Item Material
1 Body CAC403 9 Lock Plate C2600P
2 Bonnet CAC403 10 Set Screw C2700W
3 Disc CAC403 11 Haxagon Nut C3604BD
4 Stem C3771BD 12 Split Pin C2600W
5 Disc Nut CAC402 13 Name Plate SUS304
6 Gland CAC402 14 Packing JISF7102
7 Gland Nut CAC402 15 Gasket JISF7102
8 Disc Washer C5191P 16 Hand Wheel CAC402

NDS F7372B
5K Flanged Angle Valves

Nominal Pressure 5K
Hydraulic
Inspection		 Body 1.0MPa
Seat 0.8MPa
Type Nominal d L D C N h t H D2
Angle
Valve		 Press. Dia
5K 50A 50 100 125 100 4 15 14 180 120
65A 65 115 145 120 4 15 14 215 140
80A 80 130 155 130 6 15 14 225 140
90A 90 140 165 140 6 15 14 250 160
100A 100 150 180 155 6 15 16 270 180
No. Item Material No. Item Material
1 Body CAC403 9 Stud Bolt C3771BD
2 Bonnet CAC403 10 Haxagon Nut C3604BD
3 Disc CAC403 11 Haxagon Nut C3604BD
4 Stem C3771BD 12 Split Pin C2600W
5 Disc Nut CAC402 13 Name Plate SUS304
6 Gland CAC402 14 Packing JISF7102
7 Gland Nut CAC402 15 Gasket JISF7102
8 Disc Washer C5191P 16 Hand Wheel CAC402
